Model: KR 12 R1810-2

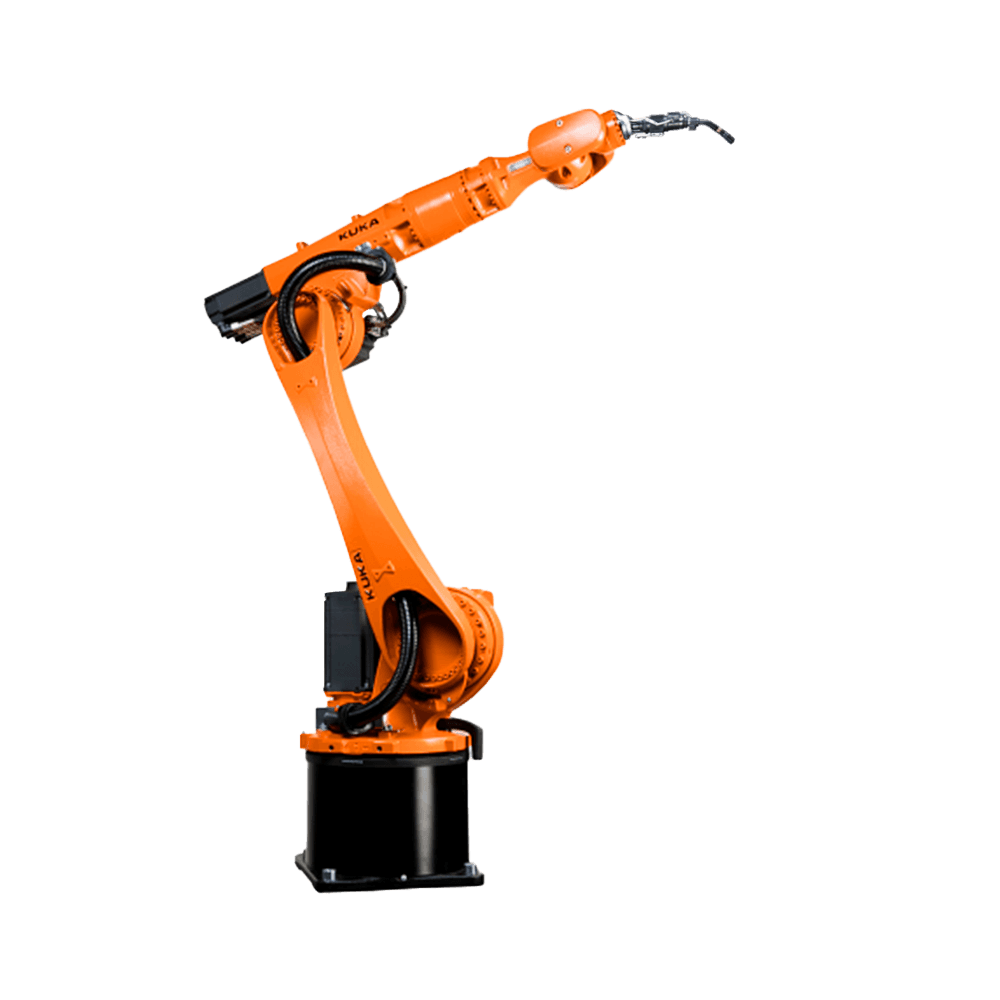

KUKA KR 12 R1810-2 6-axis welding robot, 1813mm reach, rated payload 12kg, KR C4 controller.
Factory direct price · OEM & ODM available · 12-month warranty · Worldwide shipping

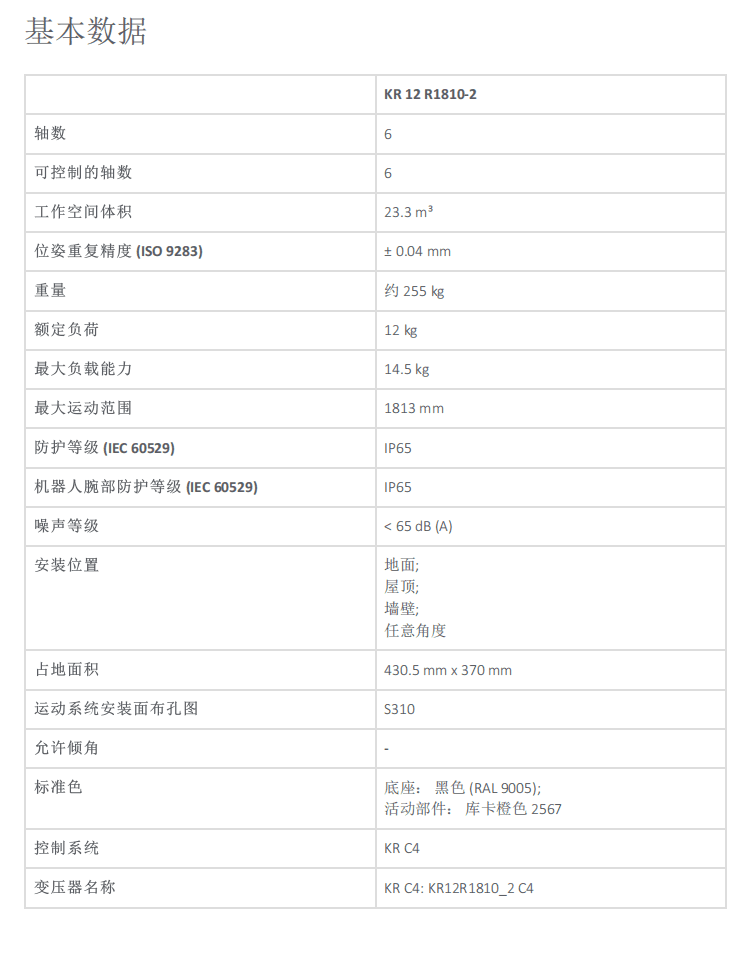

| Axes | 6 |
|---|---|
| Working Space | 23.3 m³ |
| Repeatability | ±0.04 mm (ISO 9283) |
| Weight | approx. 255 kg |
| Rated Payload | 12 kg |
| Max Payload | 14.5 kg |

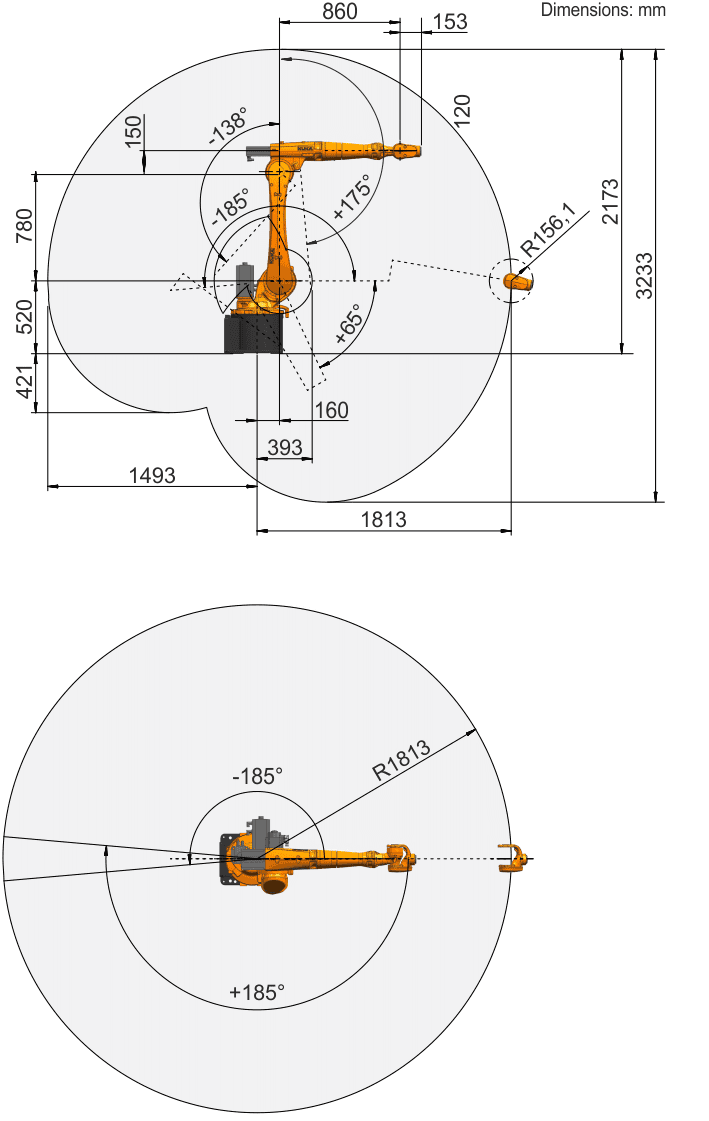

| Max Reach | 1813 mm |
| Protection Class | IP65 |
| Noise Level | < 65 dB(A) |
| Footprint | 430.5 x 370 mm |
| Hole Pattern | S310 |
| Color | KUKA Orange 2567 |
| Controller | KR C4 |
The KUKA KR 12 R1810-2 is a 6-axis welding robot with a working space of 23.3 m³ and a maximum reach of 1813 mm. Rated payload 12 kg (max 14.5 kg), repeatability ±0.04 mm (ISO 9283), IP65 protection and a body weight of approx. 255 kg. Uses the KR C4 controller.
Model: T12B-14
Xinsong T12B-14 6-axis welding robot, 1465mm reach, 12kg payload, SRC E5 controller.
Model: T12A-20
Xinsong T12A-20 6-axis welding robot workstation, 2010mm reach, 12kg payload, SRC E5 controller.
Model: M-10iD/12
FANUC M-10iD/12 (ARC Mate 1001iD) 6-axis robot, 1441mm reach, 12kg wrist payload.
Model: M-10iD/8L
FANUC M-10iD/8L series 6-axis automatic welding robot, multi-model options with 8-35kg payload.
