Model: M-10iD/8L
FANUC M-10iD/8L series 6-axis automatic welding robot, multi-model options with 8-35kg payload.
Factory direct price · OEM & ODM available · 12-month warranty · Worldwide shipping

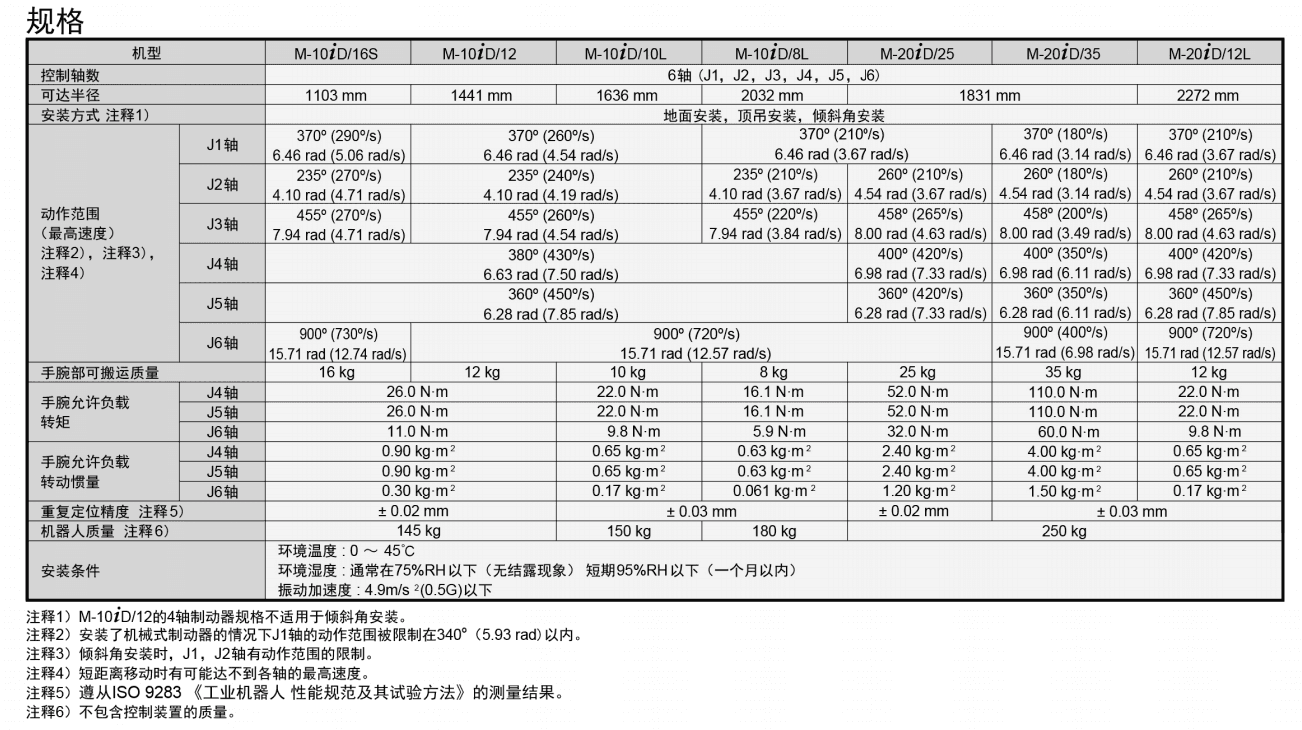

| Axes | 6 |
|---|---|
| Models | M-10iD/16S; M-10iD/12; M-10iD/10L; M-10iD/8L; M-20iD/25; M-20iD/35; M-20iD/12L |

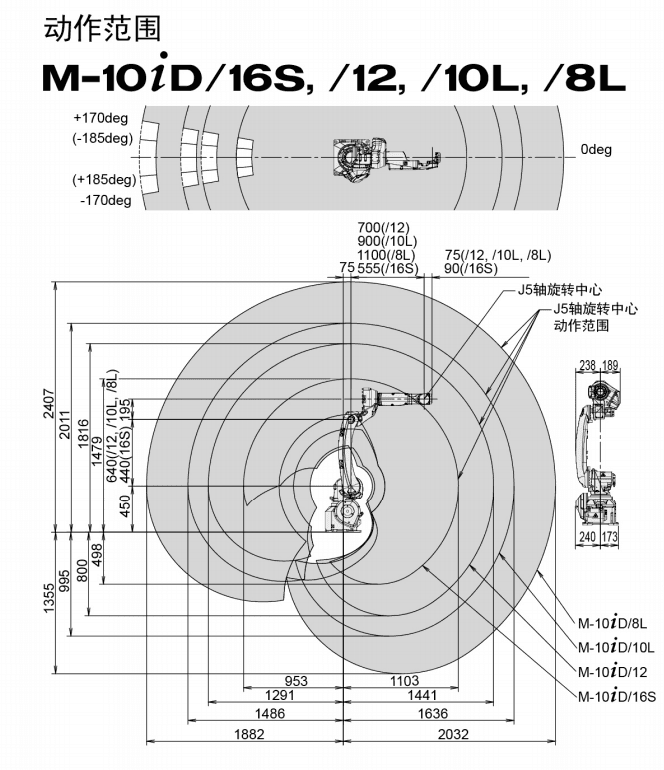

| Reach (mm) | M-10iD/16S=1103; M-10iD/12=1441; M-10iD/10L=1636; M-10iD/8L=2032; M-20iD/25=1831; M-20iD/35=-; M-20iD/12L=2272 |
| Wrist Payload (kg) | M-10iD/16S=16; M-10iD/12=12; M-10iD/10L=10; M-10iD/8L=8; M-20iD/25=25; M-20iD/35=35; M-20iD/12L=12 |
The FANUC M-10iD/8L series is a range of 6-axis automatic welding robot arms covering multiple models with payloads from 8 kg to 35 kg. Available models include M-10iD/16S, /12, /10L, /8L, and M-20iD/25, /35, /12L, with reach ranging from 1103 mm to 2272 mm to suit different welding requirements.
Model: T12B-14
Xinsong T12B-14 6-axis welding robot, 1465mm reach, 12kg payload, SRC E5 controller.
Model: T12A-20
Xinsong T12A-20 6-axis welding robot workstation, 2010mm reach, 12kg payload, SRC E5 controller.
Model: M-10iD/12
FANUC M-10iD/12 (ARC Mate 1001iD) 6-axis robot, 1441mm reach, 12kg wrist payload.
Model: KR 12 R1810-2
KUKA KR 12 R1810-2 6-axis welding robot, 1813mm reach, rated payload 12kg, KR C4 controller.
