Model: KR 6 R1440-2

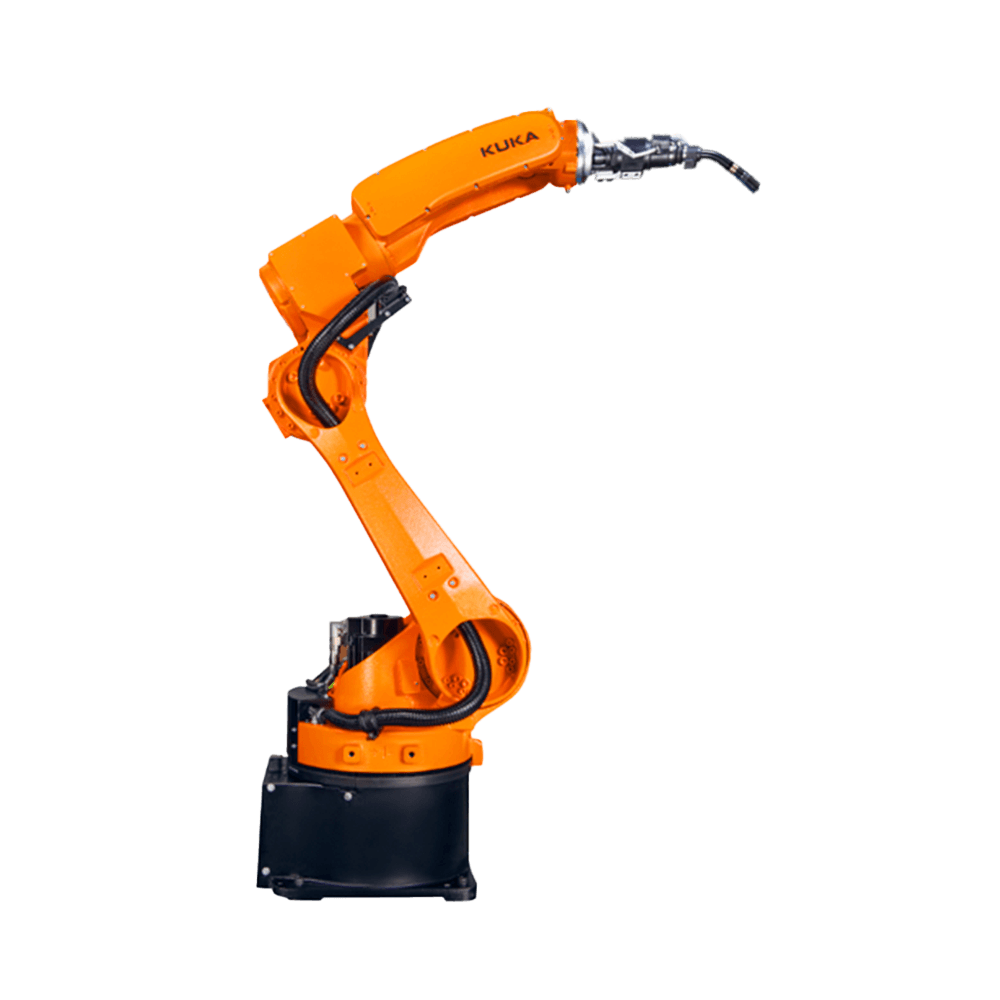

KUKA KR 6 R1440-2 arc HW E 6-axis arc welding robot, 1441mm reach, 6kg payload.
Factory direct price · OEM & ODM available · 12-month warranty · Worldwide shipping

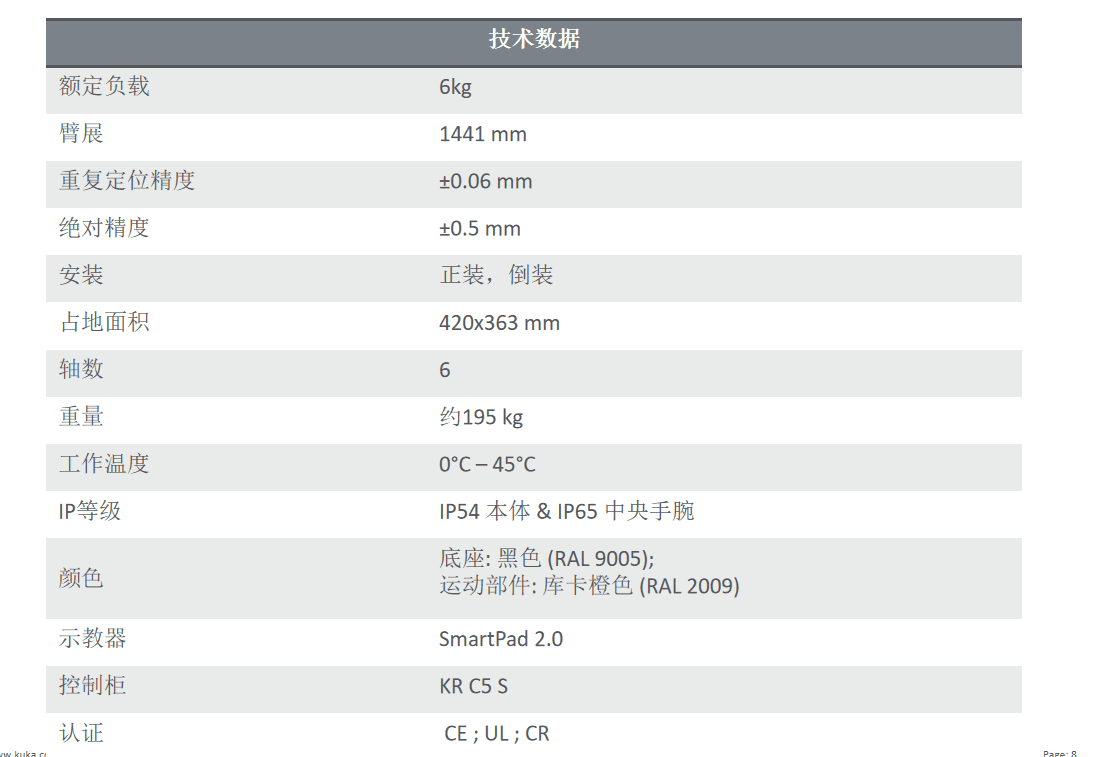

| Axes | 6 |
|---|---|
| Payload | 6 kg |
| Reach | 1441 mm |
| Repeatability | ±0.06 mm |
| Absolute Accuracy | ±0.5 mm |
| Mounting | Floor / Ceiling |
| Footprint | 420 x 363 mm |
| Weight | approx. 195 kg |
| Ambient Temperature | 0~45 ℃ |
| Protection Class | IP54 (body) & IP65 (central wrist) |
| Color | RAL9005 / RAL2009 |
| Teach Pendant | SmartPad 2.0 |
| Controller | KR C5 S |
| Certification | CE; UL; CR |
Model: T12B-14
Xinsong T12B-14 6-axis welding robot, 1465mm reach, 12kg payload, SRC E5 controller.
Model: T12A-20
Xinsong T12A-20 6-axis welding robot workstation, 2010mm reach, 12kg payload, SRC E5 controller.
Model: M-10iD/12
FANUC M-10iD/12 (ARC Mate 1001iD) 6-axis robot, 1441mm reach, 12kg wrist payload.
Model: M-10iD/8L
FANUC M-10iD/8L series 6-axis automatic welding robot, multi-model options with 8-35kg payload.
Fill in the form below — our engineers will reply within 24 hours.
The KUKA KR 6 R1440-2 arc HW E is a 6-axis arc welding robot with 1441 mm reach and 6 kg payload. It features ±0.06 mm repeatability and ±0.5 mm absolute accuracy, IP54 (body) & IP65 (central wrist) protection, a footprint of 420 x 363 mm and a weight of approx. 195 kg. Equipped with SmartPad 2.0 teach pendant and KR C5 S controller.
